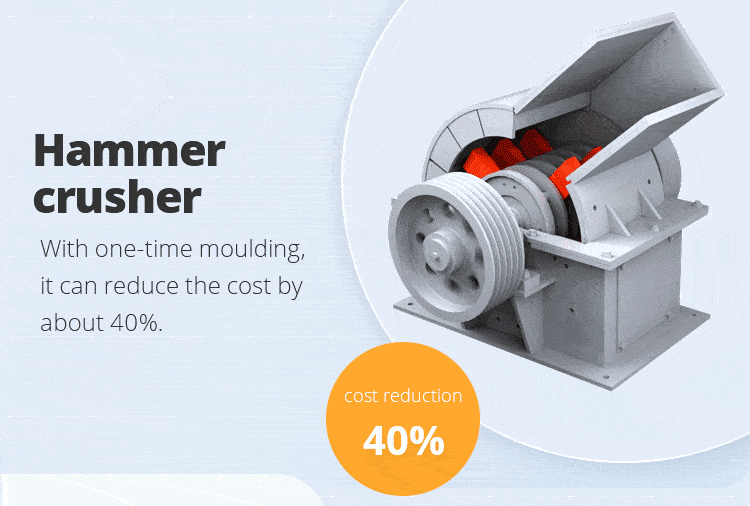

Introduction Of Hammer Crusher
The hammer crusher is a crusher that directly crushes materials with a maximum particle size of 600-1800 mm to 25 or less. Hammer crusher is a kind of equipment for crushing materials in the form of impact. It is divided into the single rotor and double rotor. This hammer mill crusher can save you cost and time because of shaping materials one time.
Applied materials Of Hammer Crusher
Applied material: Limestone, granite, cobble, dolomite, bluestone, iron ore, construction waste, glass, cement clinker, etc. Its structure: simple, compact size, light body weight, easy operation and maintenance.
Working Principle of Hammer Crusher
The main working part of heavy hammer crusher is the rotor with a hammer (also known as hammerhead). The rotor consists of a spindle, disk, pin, and hammer. The motor drives the rotor to rotate at high speed in the crushing cavity. Materials go into the hammer crusher and crushed by the high-speed rotating hammer. Driven by the hammer, the crushed materials are then thrown to the crushing plate. And the large size materials are crushed by the hammer in the grate bars and small size ones are discharged from the grate bars.
Advantages of Hammer Crusher
Wide application
Reduce costs, low energy consumption
High efficiency
Long service life
Technical Parameter of Hammer Crusher
| Model | Feeding Size (mm) | Descharging Size (mm) | Capacity(m³/h) | Motor Power (kw) | Total Weight(t) | Dimensions(Lx WxH) (mm) |
| PC 400X300 | ≤200 | ≤25 | 5-10 | 11 | 0.8 | 900x670X860 |
| PC 600X400 | ≤250 | ≤25 | 10-22 | 22 | 2.26 | 1200x1050X1200 |
| PC 800X600 | ≤250 | ≤25 | 18-40 | 55 | 4.8 | 1310x1180x1310 |
| PC 1000X800 | ≤350 | ≤25 | 25-50 | 75 | 5.9 | 1600x1390x1575 |
| PC 1000X1000 | ≤350 | ≤25 | 30-55 | 90 | 8 | 1800x1590x1775 |
