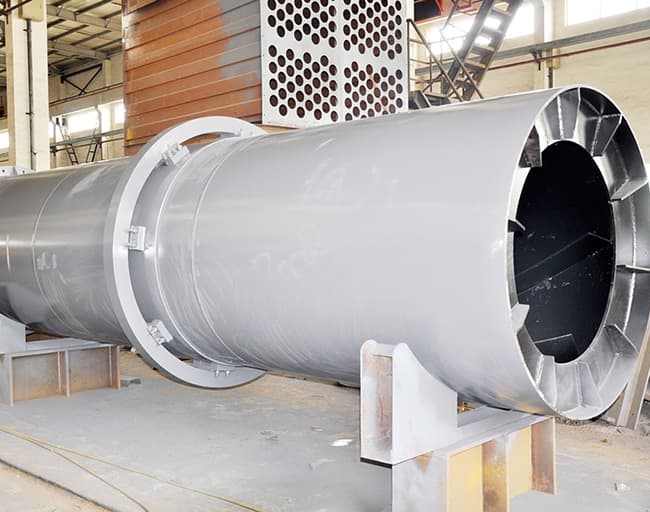

Introduction Of Sand Dryer
Sand dryer is made of 304 stainless steel material, which is wear-resistant, corrosion-resistant and high-temperature resistant. It will not cause secondary pollution to materials. It has large output, low energy consumption and low maintenance. It can bake blocks of 20-40 mm or less. For pellets and powder materials, the material with 15% initial moisture can be dried to a final moisture content of 0.5-1% or less.
Applied materials Of Sand Dryer
It is mainly used in quartz sand and corrosive materials, and is widely used in building materials, glass, metallurgy, chemical industry and cement industry.
Advantages of Sand Dryer
High drying strength and high efficiency
Simple operation environmental protection and energy saving
Advanced structure strong drying capacitye
Technical Parameter of Jaw Crusher
| Model（m） | Volume | Processing capacity | Installation Obliquity |
Highest Inlet Air Temperature |
Motor power | Weight |
| （m³） | （t/h） | （%） | （℃） | （kw） | （t） | |
| Φ1.2×8.0 | 9 | 1.9-2.4 | 3~5 | 700-800 | 7.5 | 9 |
| Φ1.2×10 | 11.3 | 2.4-3.0 | 3~5 | 700-800 | 7.5 | 11 |
| Φ1.5×12 | 21.2 | 4.5-5.7 | 3~5 | 700-800 | 15 | 18.5 |
| Φ1.5×14 | 24.7 | 5.3-6.6 | 3~5 | 700-800 | 15 | 19.7 |
| Φ1.5×15 | 26.5 | 5.7-7.1 | 3~5 | 700-800 | 15 | 20.5 |
| Φ1.8×12 | 30.5 | 6.5-8.1 | 3~5 | 700-800 | 18.5 | 21.5 |
| Φ1.8×14 | 35.6 | 7.6-9.5 | 3~5 | 700-800 | 18.5 | 23 |
| Φ2.2×12 | 45.6 | 9.7-12.2 | 3~5 | 700-800 | 22 | 33.5 |
| Φ2.2×14 | 53.2 | 11.4-14.2 | 3~5 | 700-800 | 22 | 36 |
| Φ2.2×16 | 60.8 | 13.0-16.2 | 3~5 | 700-800 | 22 | 38 |
| Φ2.4×14 | 63.3 | 13.5-16.9 | 3~5 | 700-800 | 37 | 45 |
| Φ2.4×18 | 81.4 | 17.4-21.7 | 3~5 | 700-800 | 37 | 49 |
| Φ2.4×20 | 90.4 | 19.3-24.1 | 3~5 | 700-800 | 45 | 54 |
| Φ2.4×22 | 99.5 | 21.2-26.5 | 3~5 | 700-800 | 45 | 58 |
| Φ2.6×24 | 127.4 | 27.2-34.0 | 3~5 | 700-800 | 55 | 73 |
| Φ3.0×20 | 141.3 | 30.1-37.7 | 3~5 | 700-800 | 75 | 85 |
| Φ3.0×25 | 176.6 | 37.7-47.1 | 3~5 | 700-800 | 75 | 95 |
| Φ3.2×25 | 201 | 42.9-53.6 | 3~5 | 700-800 | 90 | 110 |
| Φ3.6×28 | 285 | 60.8-76.0 | 3~5 | 700-800 | 160 | 135 |
